Keywords: Maya Animation, Keyframe, Graph Editor

Maya Keyframe series of articles:

Common Hotkeys
  • F: Center the curve on Graph Editor viewport.
  • Alt + Hold MMB: Drag timeline.

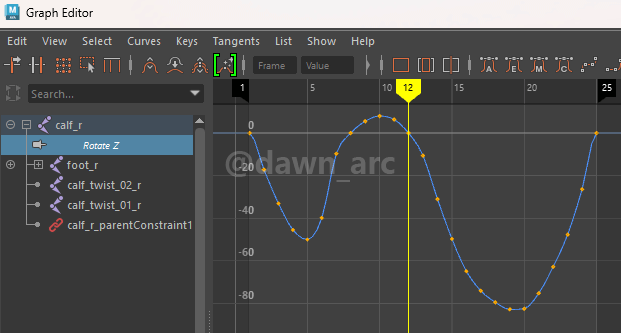

How to add Keys in Graph Editor

1, Open Graph Editor: Windows -> Graph Editor.

2, Select the target object that want to keyframe.

3, Select the target attributes of object that want to keyframe.

If the attribute was created by self, make sure the it’s keyable.

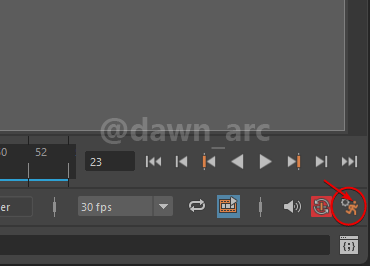

Otherwise warning was popped when add key:

Current manipulator and active objects have no keyable attributes, or animation layers are present and the BaseAnimation bar is not selected or locked.

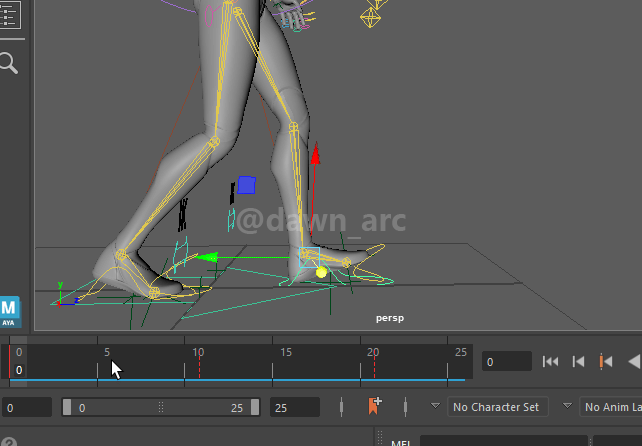

4, Hit S (or Alt + I) to insert a key at certain frame.

Or right click Channel Box -> Key Selected.

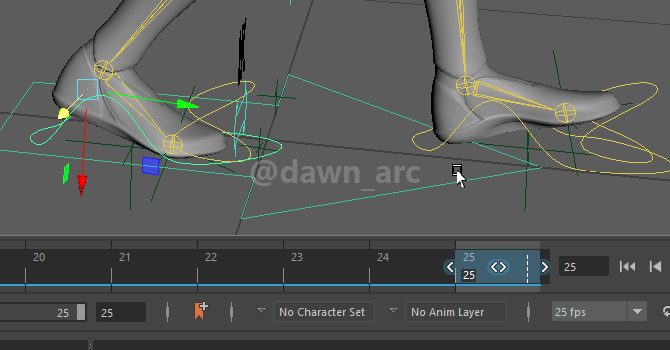

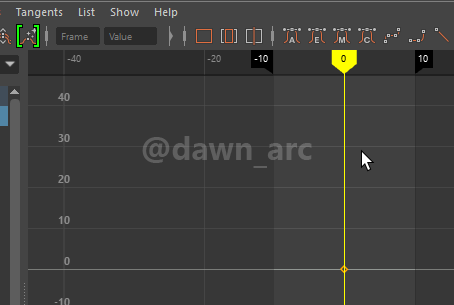

5, Hold Middle Mouse Button to move the key.

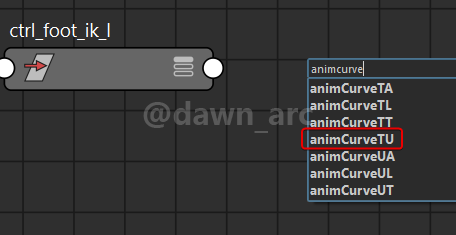

Anim Cueve Example: animCurveTU

1, Change the keyable method.
By default, all keyable attributes will be set key when hitting S, even you just select only one attribute.

But we want to set key only for selected attributes.

Solution:

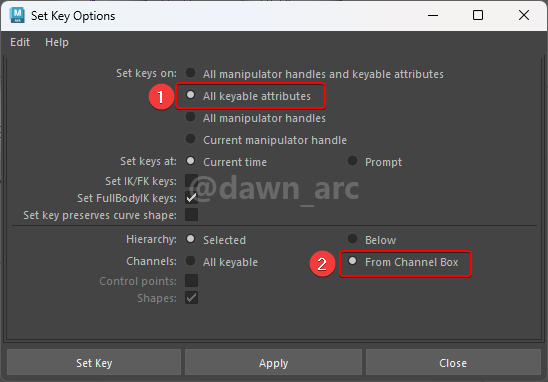

Key -> Set Key options.

Select All keyable attributes, then select From Channel Box.

2, Add a keyable attribute:

3, Select the target attribute, then hit S to set key.

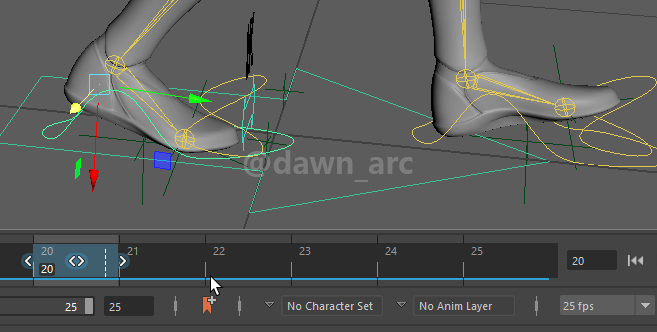

When the Key was set, you can move the key by hold MMB.

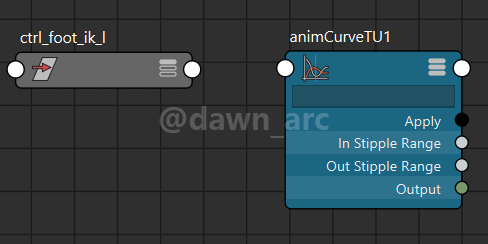

After hitting S, an new node will be created automatically in Node Editor: animCurveTU. aaa

If can’t see animCurveTU node, click Input connections.

4, Adjust the frame range.

Make sure the animCurveTU node was selected in Node Editor before adjust keyframe parameters, otherwise anim curve will be lost in animCurveTU.

5, Set key by Hit S.

You can also delete key by Hit Del, or click: Key -> Delete Keys.

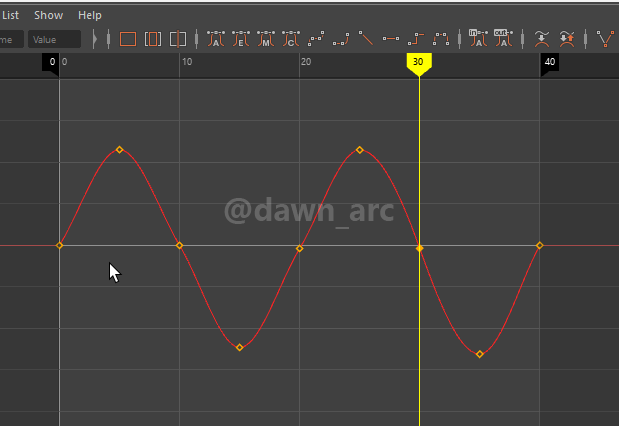

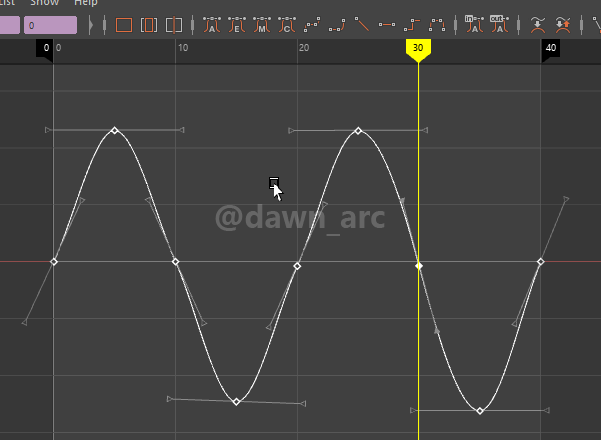

6, Set the key value, then straighten anim curve.

7, Build the driven process for attribute.

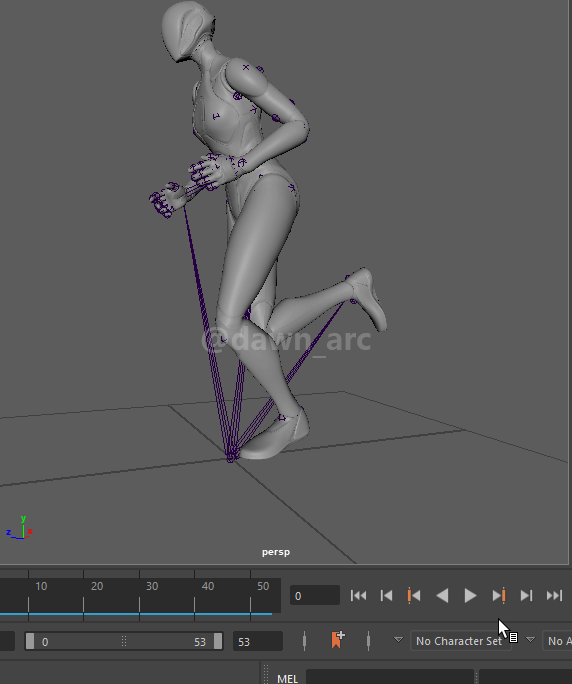

End result:

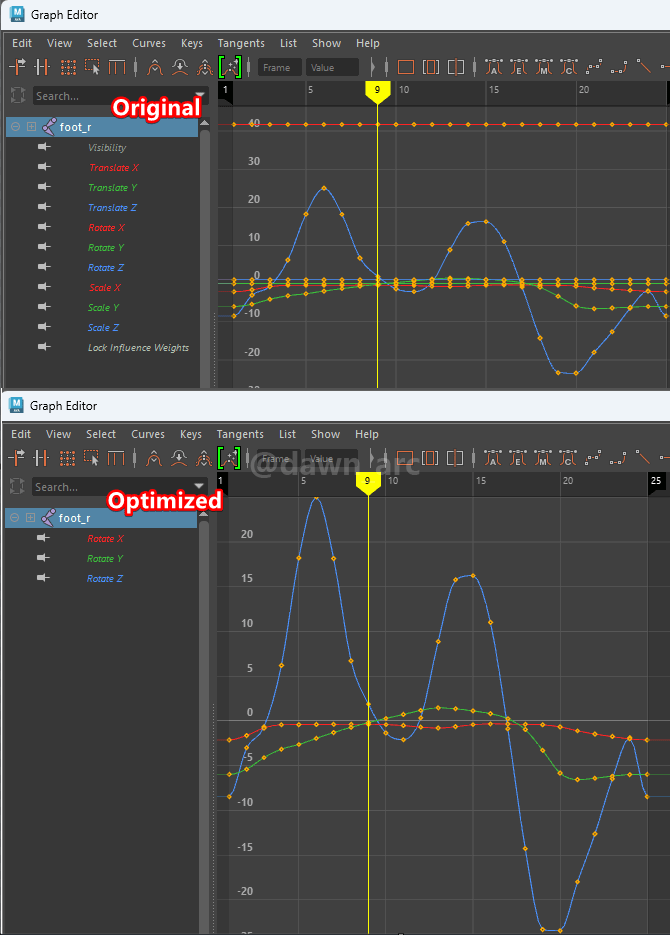

Make sure the Offset Parent Matrix of bone was optimized.

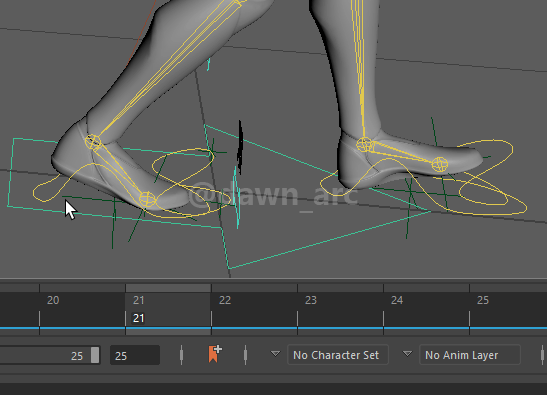

8, Finally, we can fine tune toe rotation by tweak attribute.

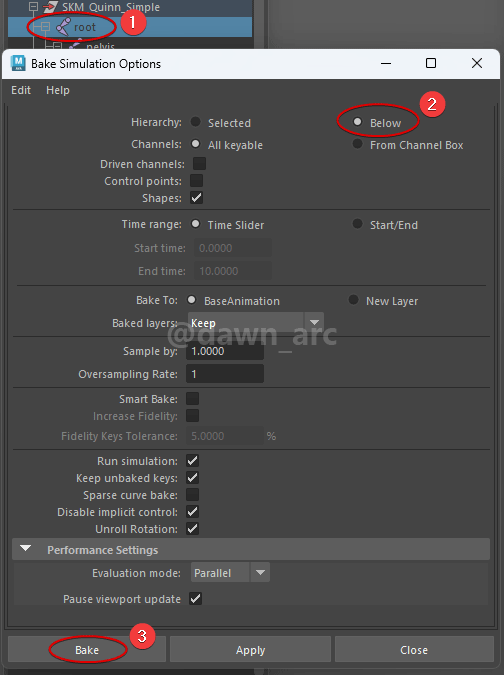

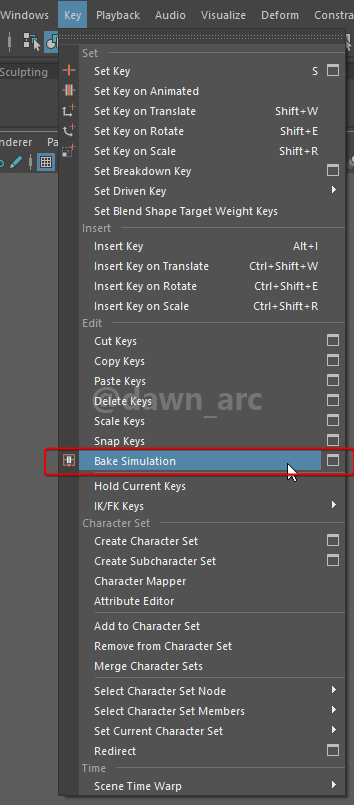

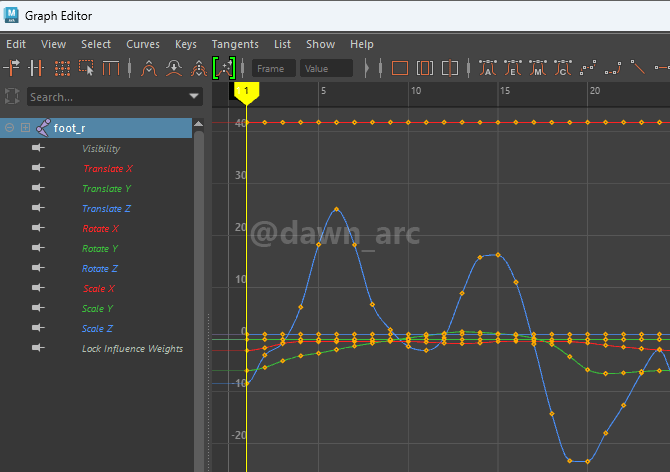

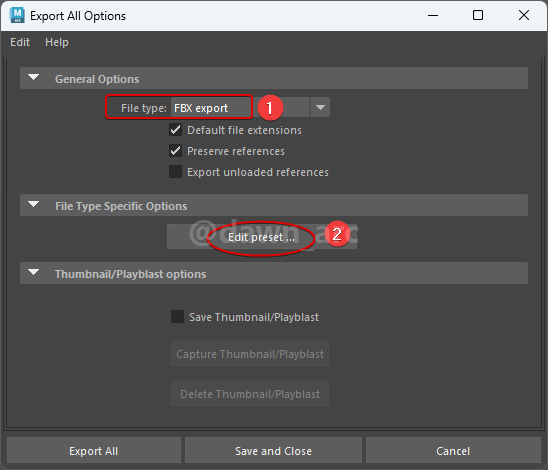

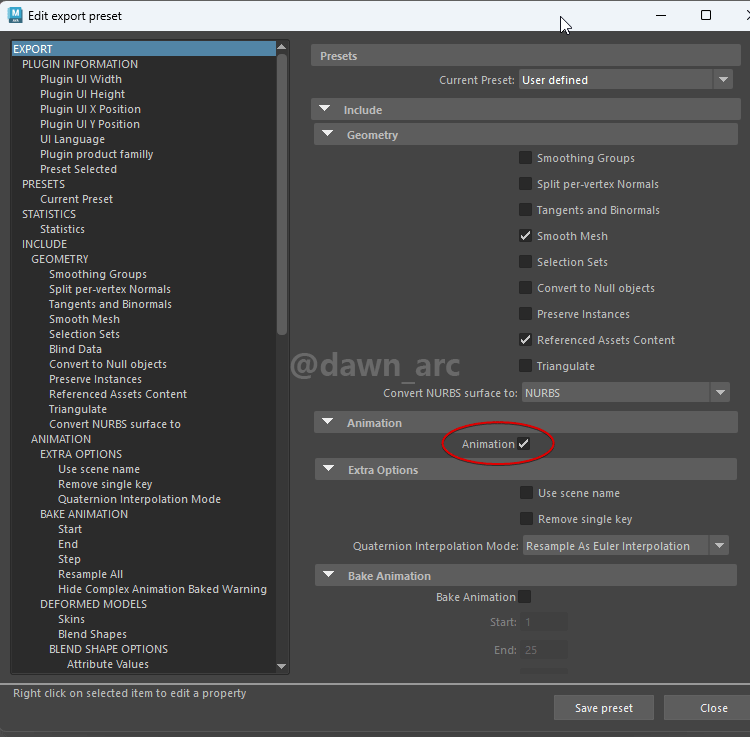

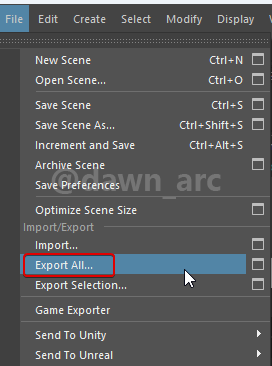

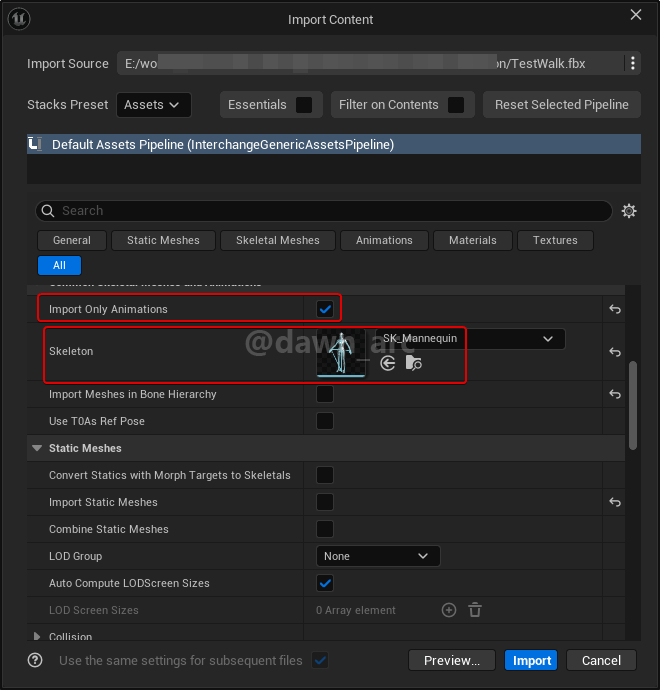

Bake Anim Curve (Export Animation to Unreal Engine by FBX)

References:
Baking Animations in Maya - Importing to Unreal Engine
https://www.youtube.com/watch?v=Qd3P6GCYpH0

References

The Graph Editor
https://create3dcharacters.com/maya-animation-the-graph-editor/
