[Maya]Rigging 01 - Joint
Keywords: Maya, Rigging, Joint Chain, Skeleton
Maya Rigging series of articles:
- [Maya]Rigging Overview
- [Maya]Rigging 01 - Joint
- [Maya]Rigging 02 - Skinning
- [Maya]Rigging 03 - Visualization
- [Maya]Rigging 04 - Controller (WIP)
- [Maya]Rigging 05 - IK & FK (WIP)
- [Maya]Rigging 06 - Keyframe (WIP)
- [Maya]Rigging 07 - Common Tricks (WIP)
Joints Notes

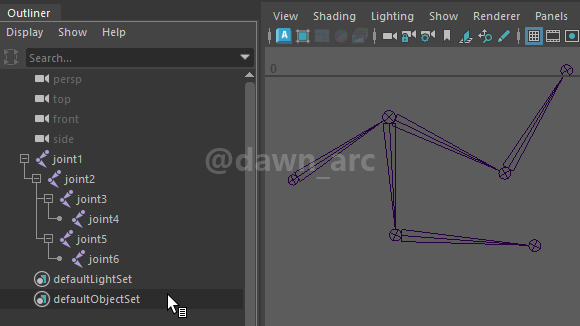

How to create root joint
Rigging (F3) -> Skeleton -> Create Joints -> Left click anywhere in viewport.
If you left click in viewport multiple times after click Skeleton -> Create Joints
, joints would be connected automatically as a joints chain.

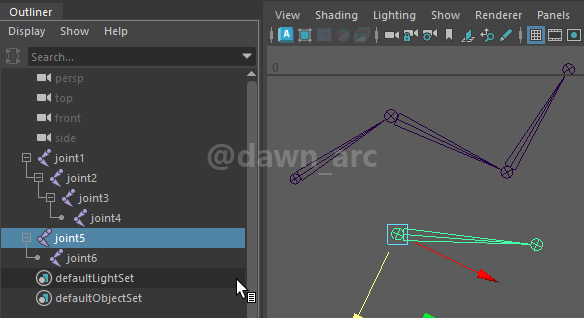

If you want to create multiple joint independently (not connected), you should end the current joints chain by hit Enter.

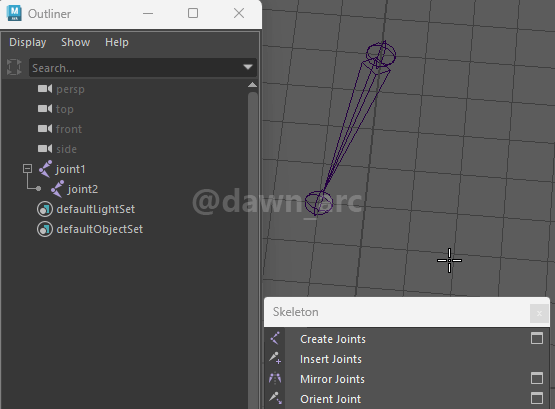

How to end current joints chain, two ways:
- Hit Enter (Recommended).
- Right click in viewport to quit
Create Joints
mode, the first right-click would create a last joint.
Tip: You can hit G to switch to the last tool that has been used (e.g. Create Joints) when you finish a joint chain and want to create a new joint chain.

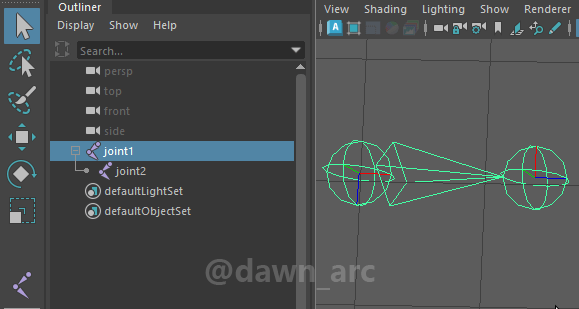

How to create child joint
Menu: Skeleton -> Create Joints, then select target joint (e.g. Joint A) which want to create child under it in Outliner Panel, then click in Viewport to create Joint B, thus Joint B was the child of Joint A.
How to attach joint to mesh surface automatically
Hold down the key V while creating joints.
Make sure Camera Based Selection is on, otherwise joint will may attach to the back surface.
![](https://dawnarc.com/img/2020/20200417-%5BMaya%5DRigging%2001%20-%20Joint/%5BMaya%5DRigging%2001%20-%20Joint%20-%2015.gif)

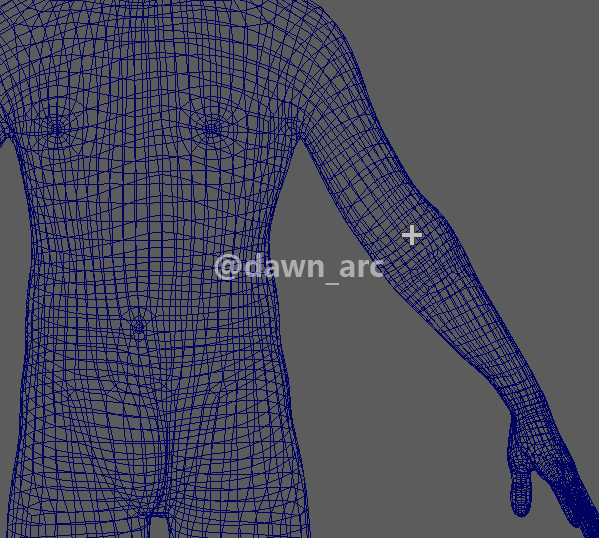

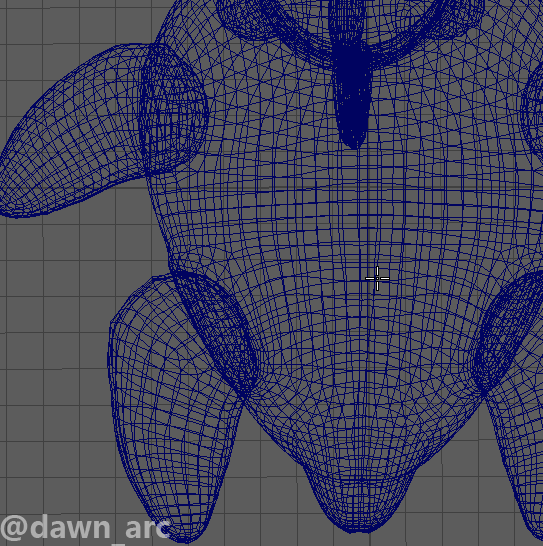

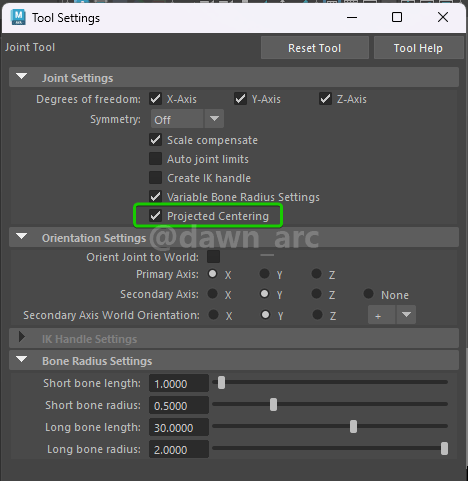

How to centering joint in mesh
By default, joints will snap on ground (Z = 0) when creating new joint.
Solution:
Skeleton -> Create Joints options -> Check Projected Centering
How to rename joint using keyboard (no mouse)
Press key Up and Down to select joint, then hit Enter.
Make sure cursor is inside Outliner, otherwise press Enter doesn’t work.
If want to jump cursor between joints at the same hierarchy, press Left or Right.

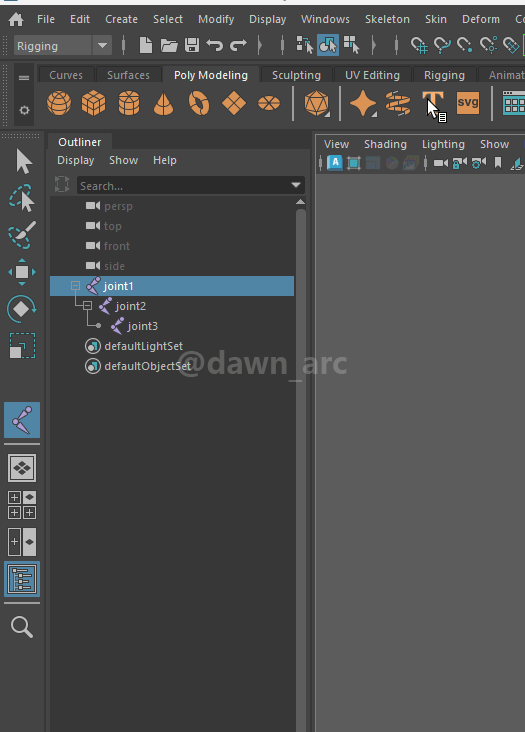

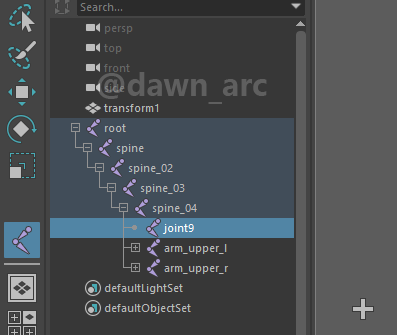

How to locate to selected joint in Outliner
Select the target joint, then hover the cursor over the Outliner and hit F.
Reveal Selected
:
How to rename joint name in a batch
Modify -> Search and Rename Names:

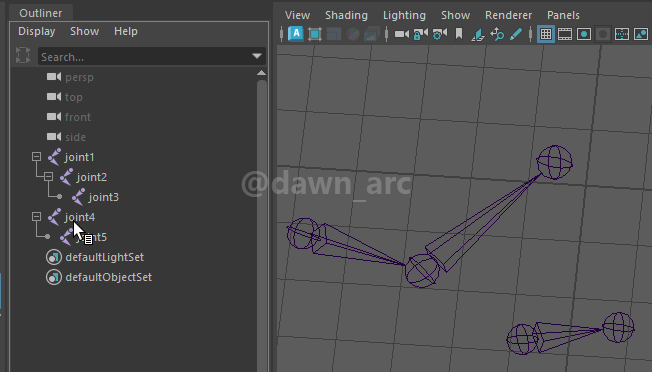

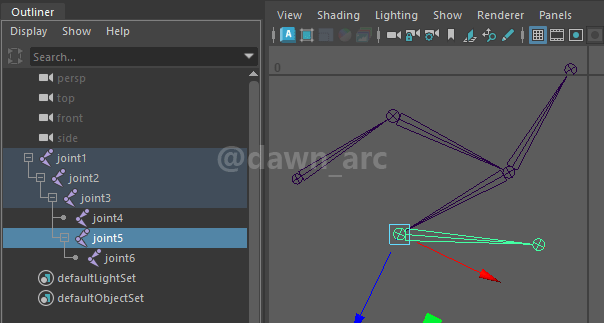

How to connect joints
Select source joint (as Child, must be the root joint) firstly, then select target joint (as Parent), Skeleton -> Connect Joint.
Reference: Connecting Maya Joints in a Min

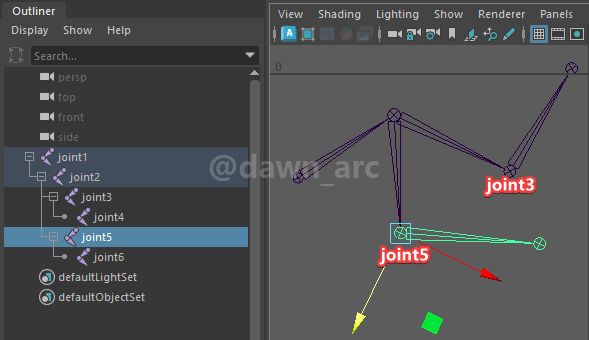

How to connent parent joints (connect joints with a new joint)
Press key P: Select child joint first, then select parent joint and hit P.
Unparent: Shift + P
How to mirror joints (create symmetrical skeleton)
Skeleton -> Mirror Joints:
How to tweak joint pivot (joint transfrom)
Press key D to toggle pivot tweaking state after the joint has been selected.
How to dump joints (copy and past)
Shift + D:

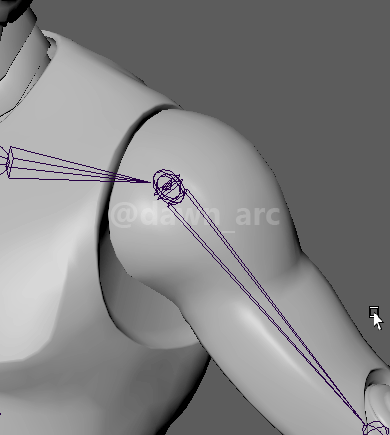

How to show joints overlayed the mesh
Toggle X-Ray joints.

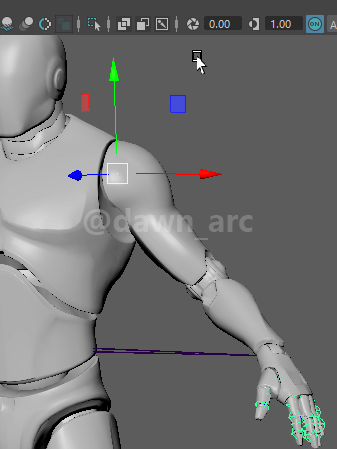

How to switch pivot space (local space or world space)
1st way (Hotbox): Hold W then hold down the LMB and drag.

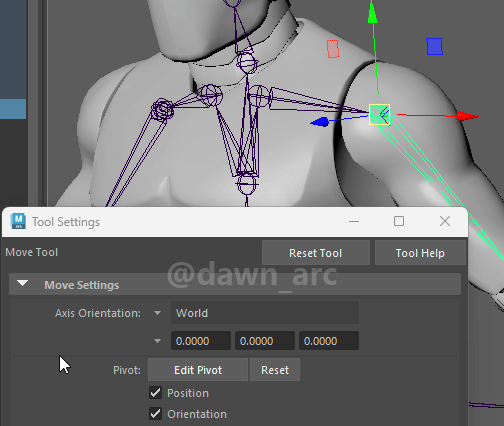

2nd way: Tool Settgins -> Axis Orientation -> Object.
Q: How to open Tool Settings panel?

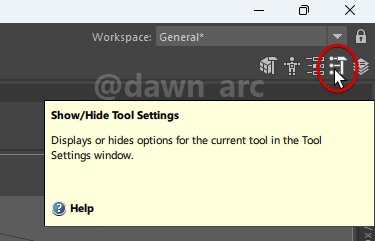

A: Click the Tool Settings icon on the top-right,

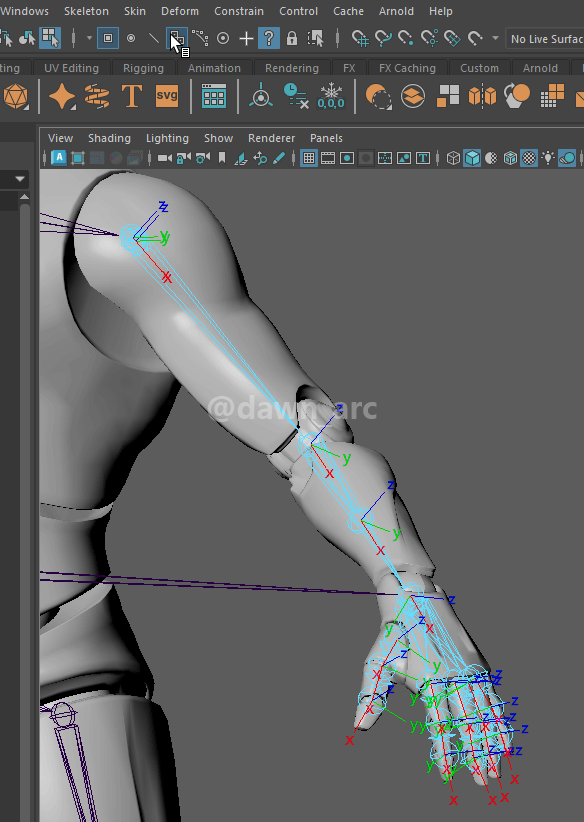

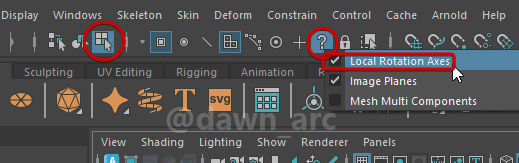

How to display Local Rotation Axes
Show Local Rotation Axes on selected joint:

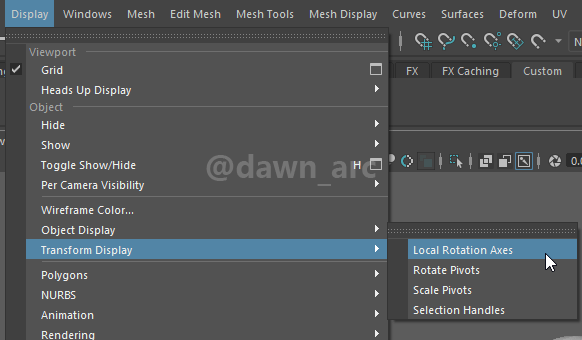

Display -> Transform Display -> Local Rotation Axes

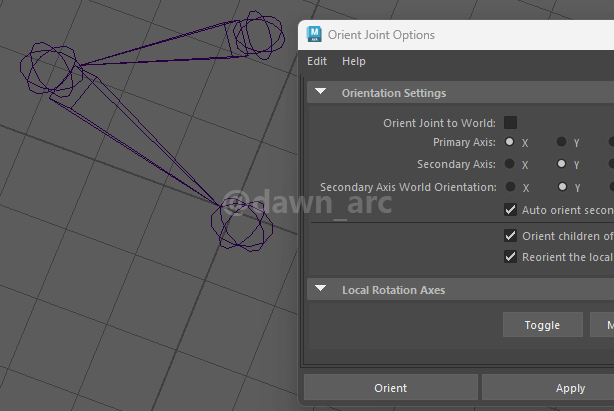

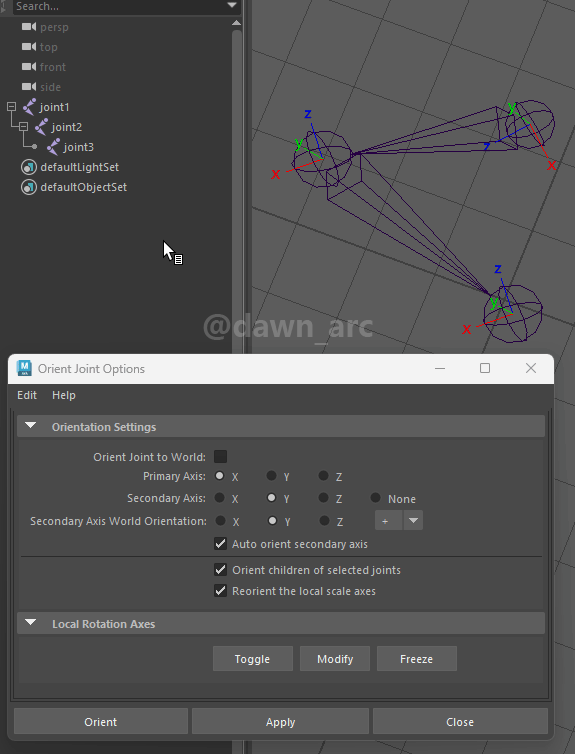

How to align Local Rotation Axes to joint orientation (Orient Joint)
When you move joints multiple times, the Local Rotation Axes may misalign from the joint’s orientation.
Solution: Skeleton -> Orient Joint.
Toggle the visibility of Local Rotation Axes while orienting joint.
If there’s warning when orienting joint:
Warning: skipping joint03,it has non-zero rotations.

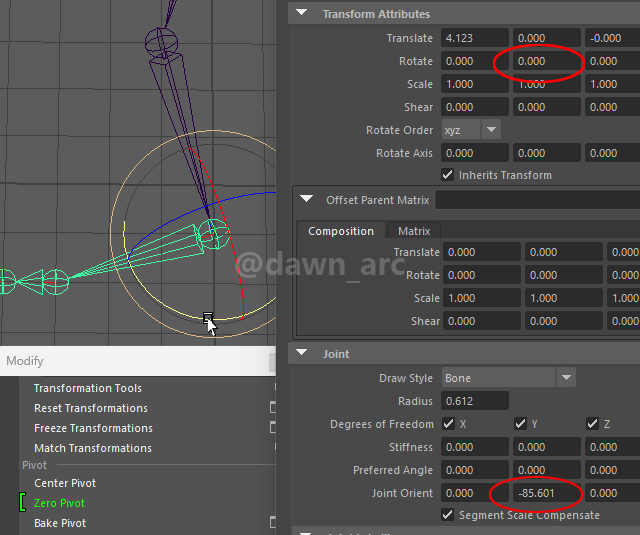

That means you had rotated the joint before, you should clean the joint’s rotation before orienting joint.
How to Assume Preferred Angle
Right click the target joint, Set Preferred Angle first, then you can Assume Preferred Angle.
How to change hierarchy of child joint
As shown in following image, Joint BBB
is a child of ROOT
, and BBB
has no child joints:
If want to change hierarchy of BBB
as a child of AAA
, do setps follows:
- Create a child joint under
BBB
: - First select
BBB
, then selectROOT
, Skeleton -> Disconnect Joint: - Now
BBB
would be a new root joint: - First select
BBB
, then selectCCC
, Skeleton -> Connect Joint: - Then
BBB
would be a child ofAAA
which is the parent ofCCC
:
There’s no way to change hierarchy of BBB
without disconnecting BBB firstly, otherwise you would get a error:
// Error: file: D:/Autodesk/Maya2020/scripts/others/doDisconnectJoint.mel line 32: Cannot disconnect the end joint.
How to delete joint
Note:
- You can only remove one joint at a time.
- You can not remove a root joint.
- You can remove joints from the skeleton of a character with a bound skin without having to detach its skin.
To remove a joint
- Select the joint that you want to remove.
- In the Rigging menu set (press F3), select Skeleton > Remove Joint.
Reference:
Remove joints - Autodesk Maya Documents
Issues
Cannot connect sibling joints
Case:
There’re some error messages while connecting joints.
Error: Cannot connect sibling joints.
Or:
Error: line 0: The child joint must be a root joint.
Caused by:
Maybe it’s a bug of Maya.
Solution:
Restart Maya, or reimport asset(e.g. FBX) in a new scene, or create a new child joint in parent joints, then connect target joints and source joints again.
Unable to find the bind pose for : / test_group / root_joint. Use the DAG node current transform.
Error log on exporting control rig as FBX:
Unable to find the bind pose for : / test_group / root_joint. Use the DAG node current transform.
Solution:
To nuke all of the bindposes:
- In outliner go to Display and uncheck DAG Objects Only
- Then in the search bar look for bind that should show every bindpose in the scene, delete them all.
- Clear the search bar, and turn on DAG Objects Only again.
Rebuild the bindpose:
Then select every joint in your skeleton and execute command dagPose -bp -save
(In the MEL bar, bottom lower left corner type command hit enter).
https://polycount.com/discussion/209134/maya-unable-to-find-the-bind-pose-when-exporting-to-fbx
